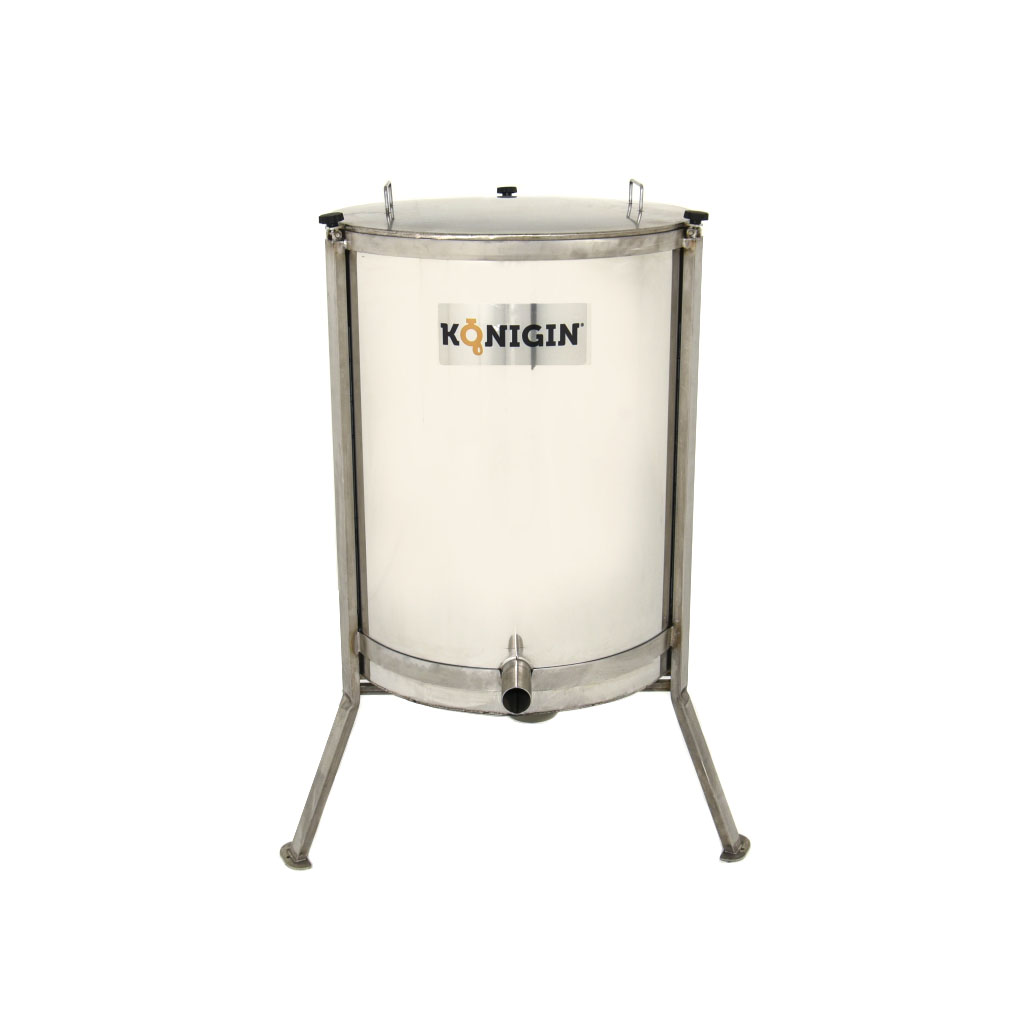

VC-64-230 Wax Melter and Extractor

The VC-64-230 Wax Melter and Extractor is a robust, electrically heated unit designed for efficient wax melting and extraction. With a 640 mm diameter, it allows beekeepers to melt wax into blocks or extract wax from frames with ease. The lockable lid and bearing system ensure safe and reliable operation, while the compact design makes it versatile for a variety of production settings.

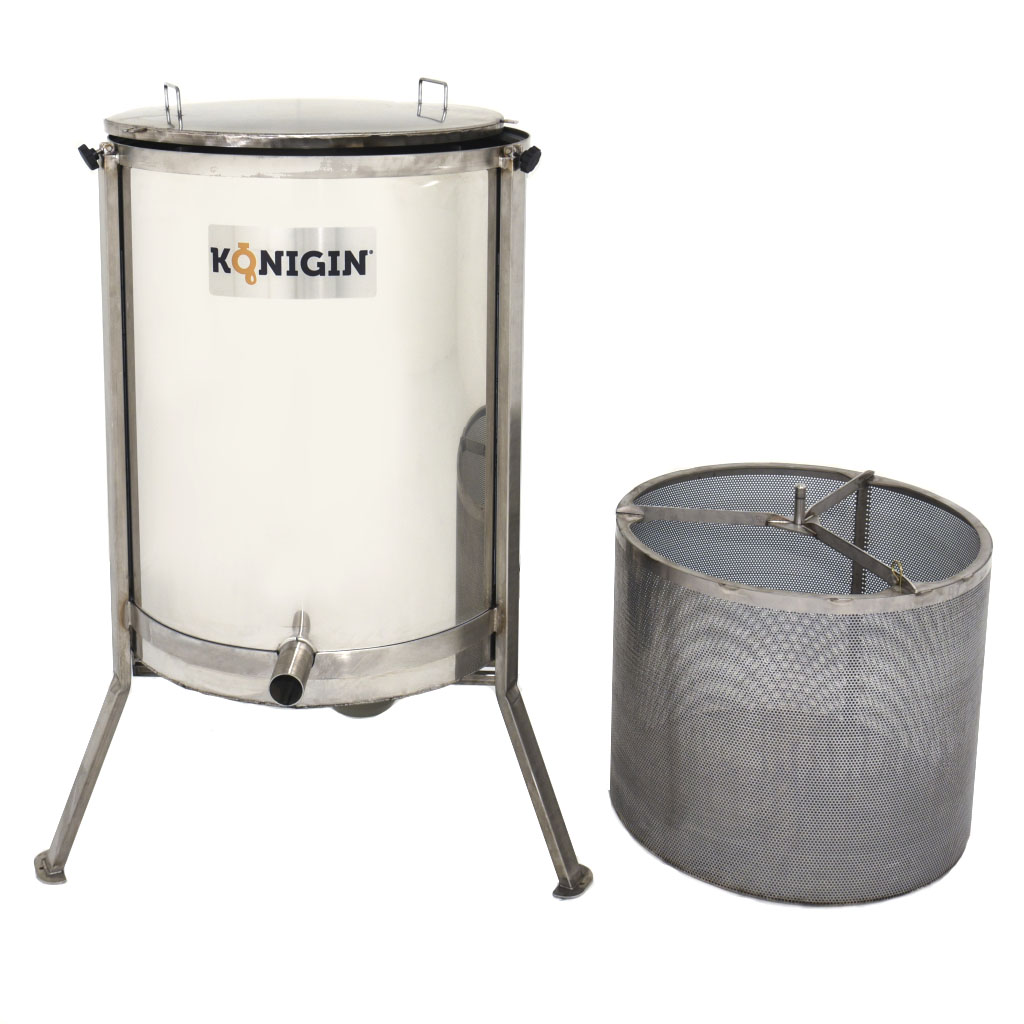

Material of the rotating basket: 1.4301 Stainless Steel

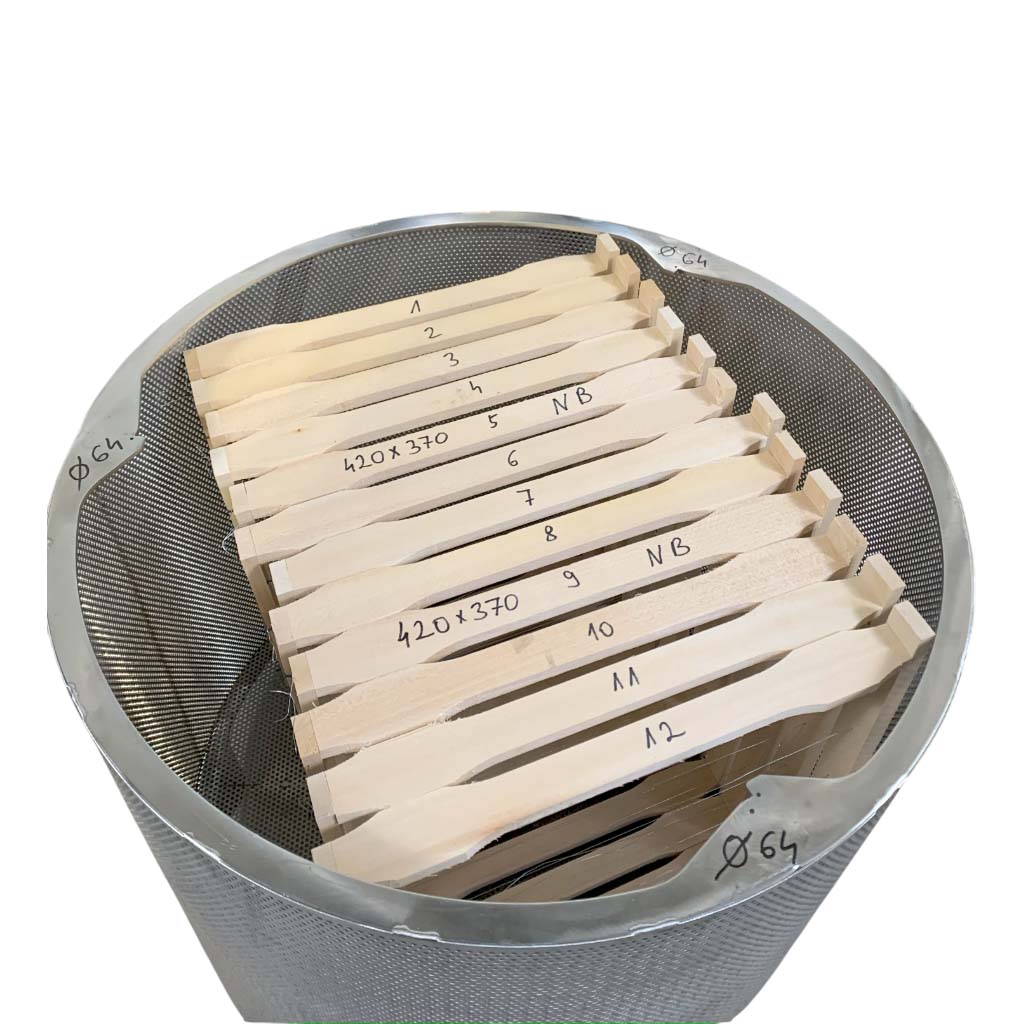

Diameter of the rotating basket: 580 mm
Height of the rotating basket: 485 mm
Outer diameter of the wax melter: 650 mm
Height of the honey tap with standard feet: 430 mm
Height of the mantle: 760 mm
Material thickness of the bottom: 2.0 mm

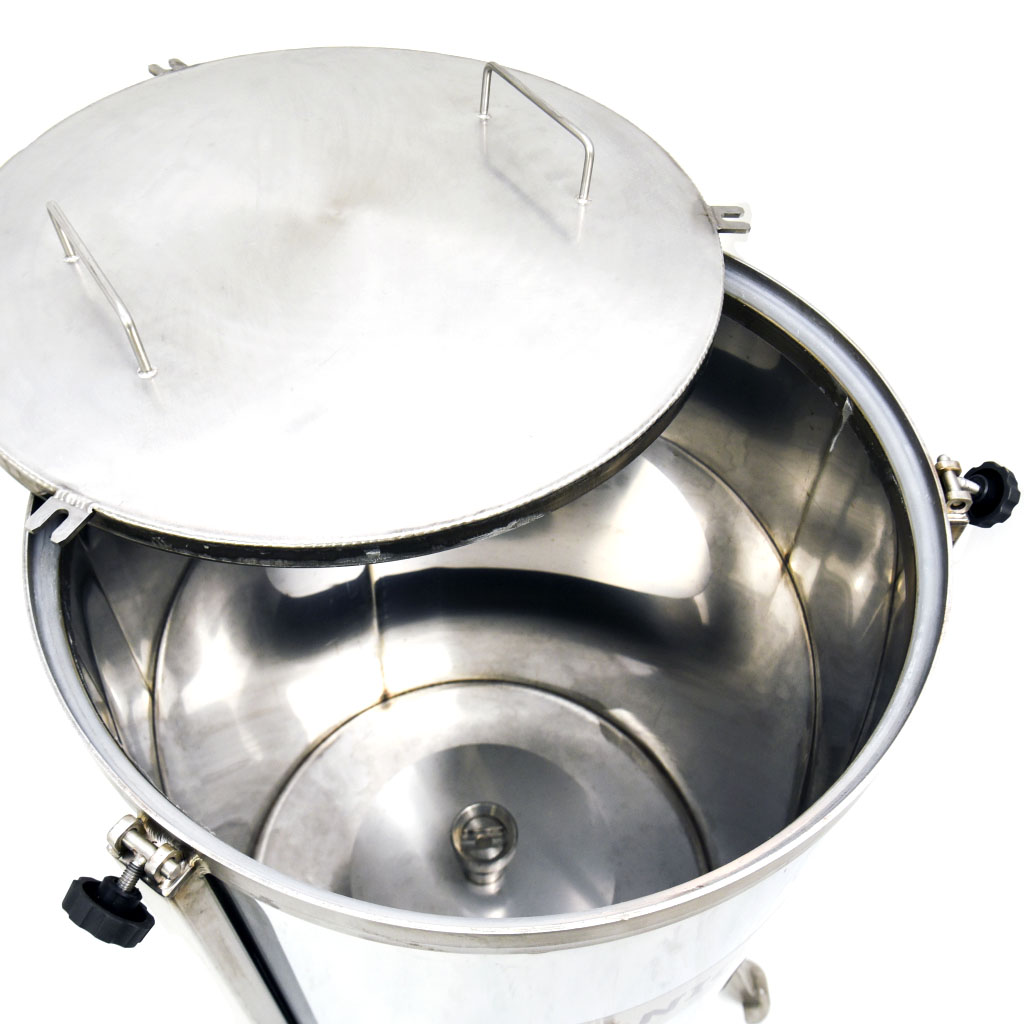

Material type and thickness of the lid: 1.4301 Stainless Steel, 1.5 mm
Material type and thickness of the mantle: 1.4301 Stainless Steel, 1.0 mm
Drive: 230 V motor driven
Power: 3,250 W
Rotation speed of the basket: 100 – 250 rpm

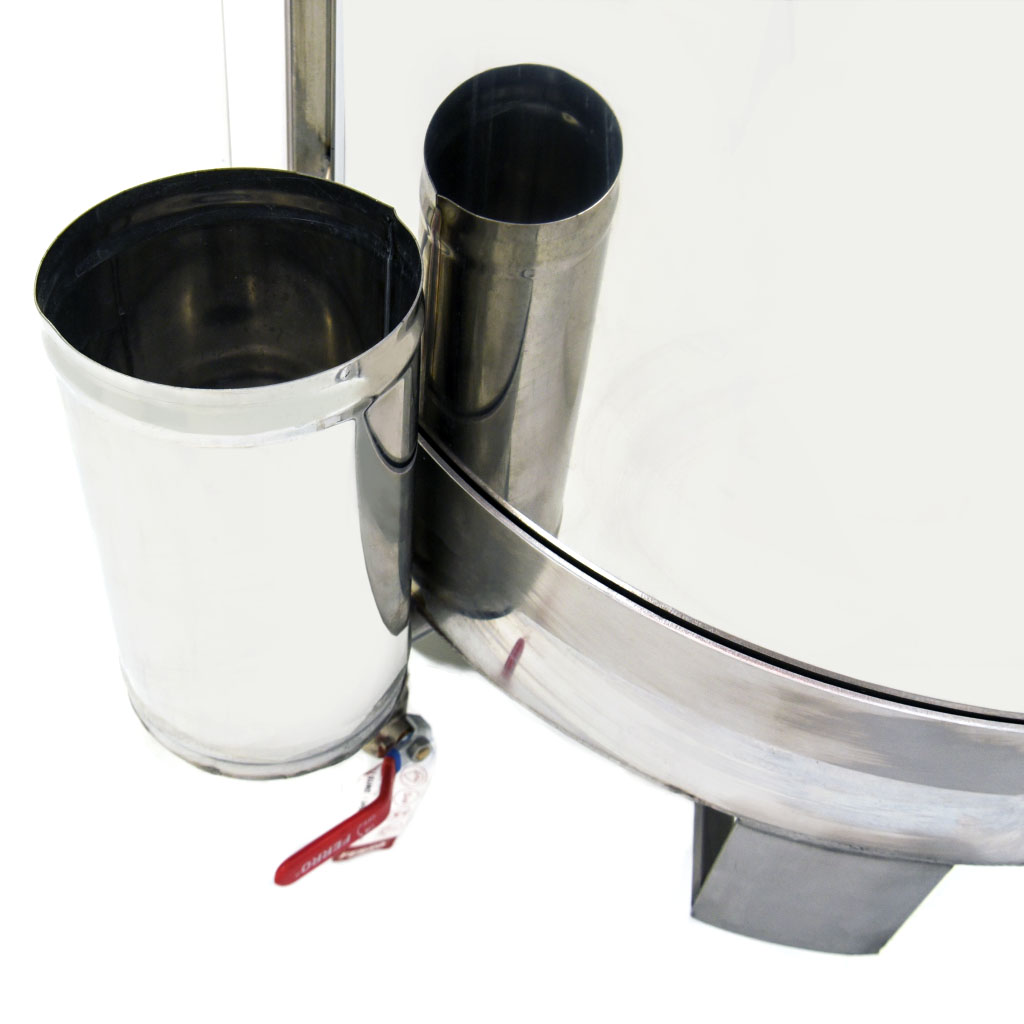

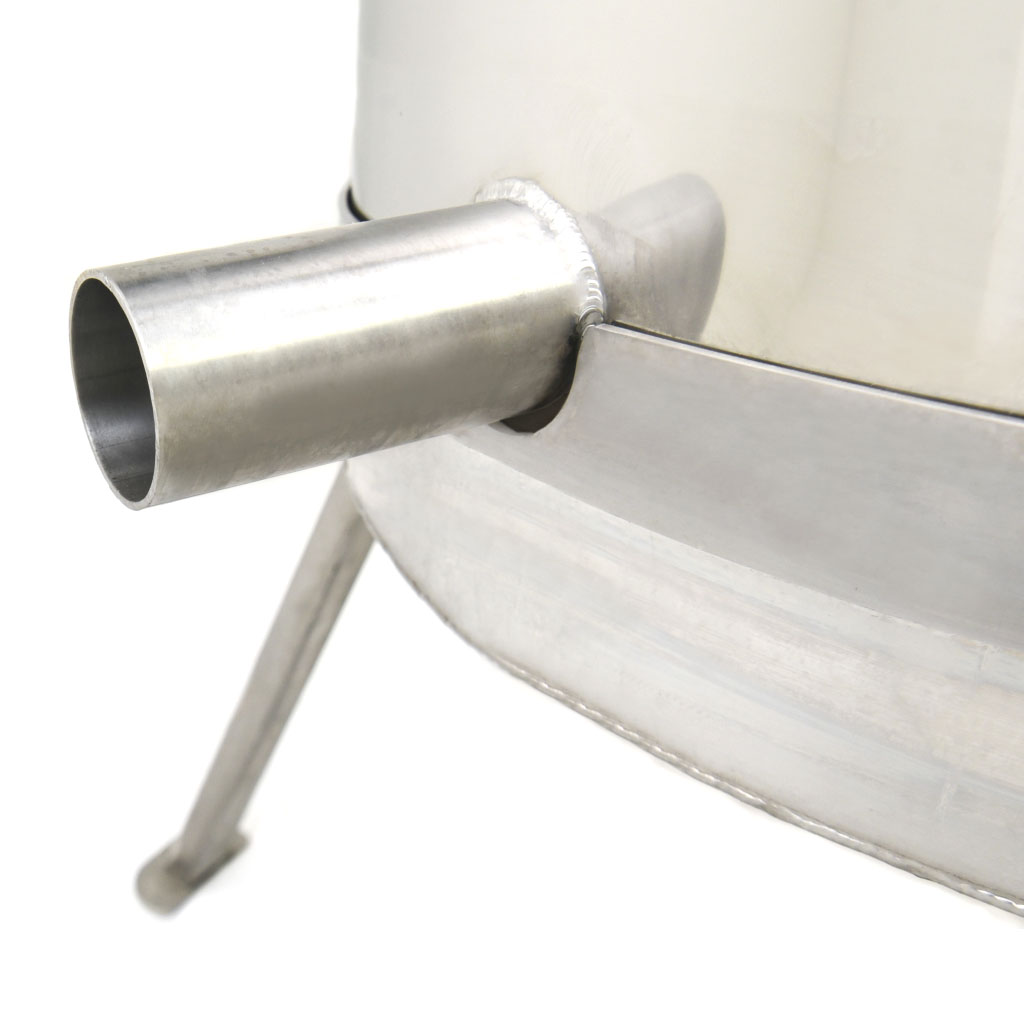

Material of the honey tap: Stainless Steel
Machine control: Semi-automatic
Weight: 64 kg
Warranty: 2 years
